ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
Chapter 1 |
ITALIAN BOMBS |
5-kg Vento-Marker |
Data |
Over-all length |
17.4 in. |
Body length |
8.9 in. |
Body diameter |
5.2 in. |
Wall thickness |
0.3 in. |
Tail length |
9.2 in. |
Tail width |
7.0 in. |
Type of filling |
Smoke or Incendiary |
Weight of filling |
Unknown |
Total weight |
5.2 kg |
Fuzing |
Nose fuze - Type S |
Description |
The body consists of a thin metal cylinder liner and outer concrete bomb body, which is reinforced with sheet pellets and wire. The body liner has welded to it: (1) the suspen-sion-lug socket which is internally threaded to receive the horizontal suspension lug; (2) four metal vane supports which have riveted to them four aluminum-alloy vanes; (3) two pairs of diametrically opposite wire guides for the base-plug retaining wire; (4) the ends of a helical reinforcing wire, 16 S.W.G., which is coiled in three turns and passes through the holes provided in the vane support; and (5) the upper end of a second helical rein-forced wire, 8 S.W.G., which is coiled in five turns and welded at its other end to the fuze pocket. The body-liner closing disc is drilled centrally and has pressed to it the fuze pocket. At the upper end, the liner is closed by a cork plug. This bomb is used in con-junction with chemical bombs. The purpose is to indicate the force and direction of the wind at ground level. Two main fillings are used, a smoke filling for use in the day-time, and an incendiary filling for use at night. The night filling is the 1-kg in-cendiary Bomb Type II. Another modification of this bomb has no body liner but is all concrete and is used for practice. |

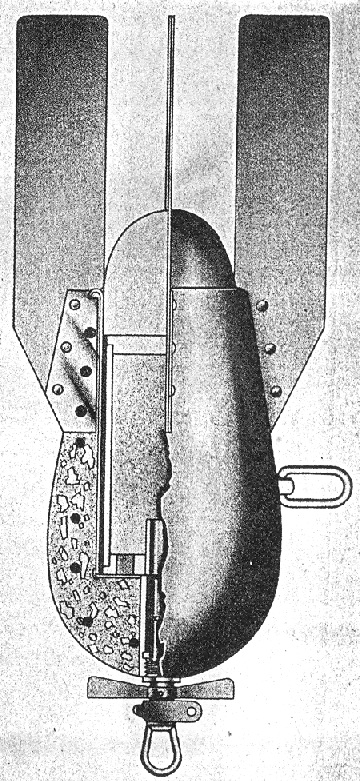

Figure 30 |
|
