| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 2 |
| ITALIAN BOMB FUZES |
| Type S - Mechanical Impact Nose Fuze |
| Data |
|
Bombs used in |
Small smoke or Incendiary |
|
Fuze used with |
Alone |
|
Over-all length |
4.5 in. |
|
Over-all length of vanes |
3.2 in. |
|
Width of the fuze body |
0.9 in. |
| Description |
|
The nose of the fuze consists of a lug which is a part of the striker. The striker is threaded just below the lug in order to receive the arming vanes. The fuze body has a narrow shoulder, immediately beneath which are the threads which screw into the nose-fuze pocket of the bomb. A stop pin inserted in a channel in the striker prevents the spindle from turning with the arming vanes. The detonator cap is located in the lower part of the fuze body, with another small charge of explosives. A creep spring separates the striker from the detonator. |
| Operation |
|
The safety pin is withdraw when the bomb is dropped. The vanes rotate in flight and rise on the striker. The striker then rests on the creep spring. Upon impact, the striker over-comes the creep spring, contacts the primer, and initiates the explosion. |
|

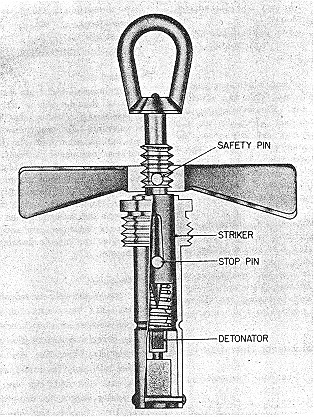

Figure 49 |
|
|
 |
