| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 1 |
| ITALIAN BOMBS |
| 160-kg (CS) Antisubmarine Bomb |
| Data |
|
Over-all length |
69.8 in. |
|
Body length |
36.2 in. |
|
Body diameter |
13.3 in. |
|
Wall thickness |
0.31 in. |
|
Tail length |
27.2 in. |
|
Tail width |
15.3 in. |
|
Type of filling |
TNT |
|
Weight of filling |
99 kg. |
|
Total weight |
176 kg |
| Fuzing |
|
Nose fuze - Type B |
|
Tail fuze - "Grand-daddy" |
| Description |
|
This bomb has a hemispherical nose. The vanes are short, with a corrugated metal rein-forcing ring around the rear of vanes. |
| Color and Markings |
| Over-all - grey; nose - red |
|

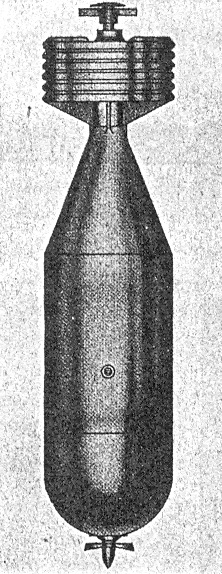

Figure 31 |
|
|
 |
