BOMB FUZE DATA

Part 2 - ARMY BOMB FUZES

BOMB TAIL LONG-DELAY FUZES M132, M133, M134

Characteristics

Action - Chemical, long-delay, 16 min. (average) at 80° F. or instantaneous in attemp-ted with-drawal.

Modification - None

Status - Service.

Restriction on Use - Not to be returned to air-fields or carriers.

Air Travel to Arm - Approximately 100 ft.

Indication of Arming - Nor external indications of arming.

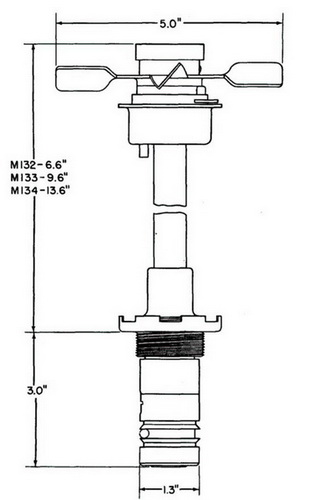

Figure 67. - Outline Drawing of Tail Long-Delay Fuzes M132, M133, M134

Bombs in Which Used

M132

100-lb. G.P. Bomb AN-M30 and Mods

250-lb. G.P. Bomb AN-M57

M133

500-lb. G.P. Bomb AN-M43

500-lb. G.P. Bomb AN-M64 and Mods

500-lb. S.A.P. Bomb AN-M58 and Mods

M134

1000-lb. G.P. Bomb AN-M44

1000-lb. G.P. Bomb AN-M65 and Mods

1000-lb. S.A.P. Bomb AN-M59 and Mods

2000-lb. G.P. Bomb AN-M34

2000-lb. G.P. Bomb AN-M66 and Mods

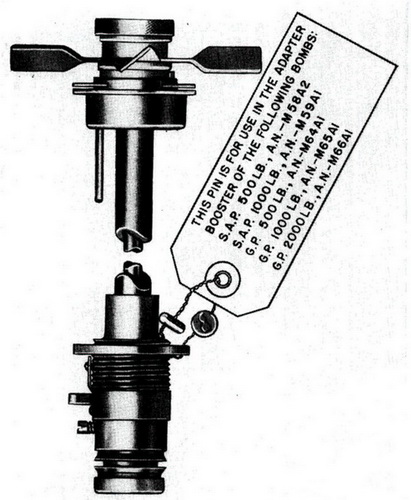

Figure 68. - Tail Long-Delay Fuzes M132, M133, M134

Weight and Packing

Weight of Fuze Fully Loaded - (Approximate)

M132 - 2.1 lb.

M133 - 2.3 lb.

M134 - 2.6 lb.

Standard Packing - Twenty-five fuzes, each in a metal container, are packed in a woo-den crate whose weight and dimensions are:

Fuze	Crate Size	Weight (gross)
M132	14.8 in. x 15.8 in. x 19.2 in.	124 lb.
M133	14.8 in. x 15.8 in. x 22.2 in.	137 lb.
M134	14.8 in. x 15.8 in. x 26.3 in.	153 lb.
