| BOMB FUZE DATA |
| Part 2 - ARMY BOMB FUZES |
| BOMB NOSE FUZE M135A1 |
|
Characteristics |
|
Action - Mechanical time 5 - 92 sec. or instantaneous upon impact. (Similar to fuze M111A2, with lower body and booster of Fuze AN-M103.) |
|
Modification - M135A1 differs from M135 only in having an minimum time setting of ten sec. instead of five sec. |
| Status - Not produced for Naval use. |
| Restriction on Use - Not to be used by Naval activities. |
| Air Travel to Arm - Approximately 1300 ft. |
| Indication of Arming - Safety block missing. |
|
|
|

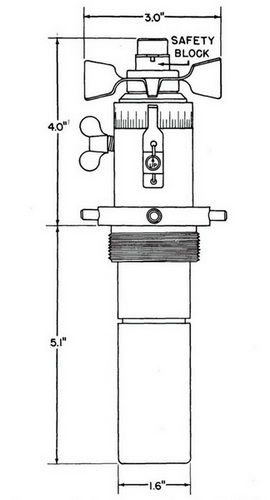

Figure 69. - Outline Drawing of Nose Fuze M135A1 |
|
Bombs in Which Used |
|
May be used in any bomb in wich Fuze AN-M103 will fit. (See page 45.) |
|
|
|
Figure 70. - Nose Fuze M135A1 |
|
Weight and Packing |
| Weight of Booster - 1.9 oz. tetryl |
|
|
