| U.S.N.B.D. - BRITISH BOMBS AND FUZES; PYROTECHNICS; DETONATORS |
| S.A.P. AND A.P. BOMBS |
|
|
|
|
|
|
BRITISH BOMB |
|
|
FUZING: |

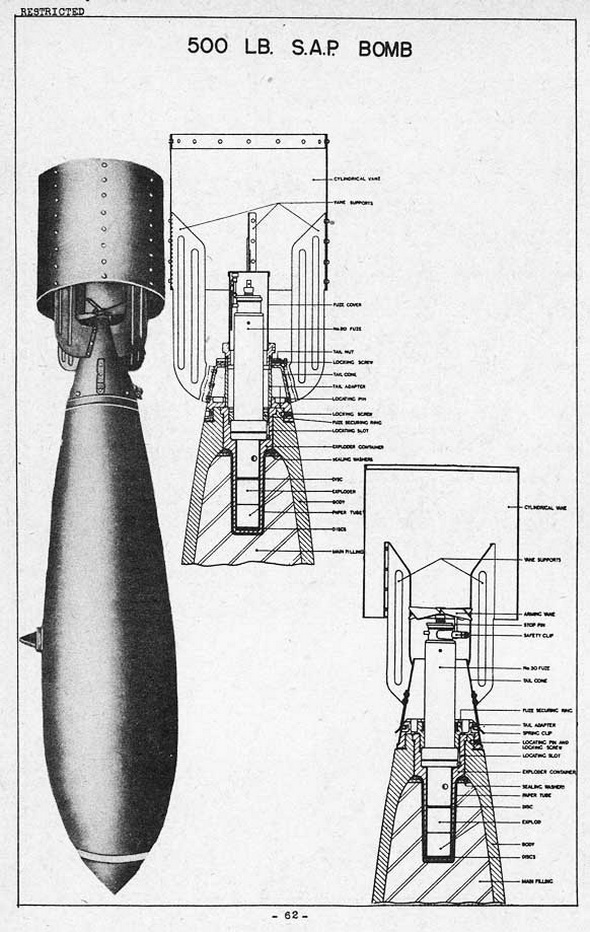

500 LB. S.A.P. |
|
|
Mks II-IV - No. 30 Tail fuze. |
||
|
Mk V - Tail Pistols No. 28 or No. 30 |
||
|
COLOR & MARKINGS: |
||
|
Dark green overall; ½" white band 3" from nose; |
Mks II & III (Obsolete) |
|
|
½" red band 3" from nose; 1" light green band |
|
|
|
8" from nose. |
Mks IIC, IIIC, & V (Service) |
|
|
TAIL NO. |
Mks II & III - No. 1 Mk I |
|
|
|
Mks IIC & IIIC - No. 4 Mk I |
|
|
|
Mk V - No. 11 Mk I |
|
|
|
No. 27 Mk I |
|
|
OVERALL LENGTH |
62" | |
|
BODY LENGTH |
41.8" | |
|
MAX. BODY DIAMETER |
11.5" | |
|
WALL THICKNESS |
1.22" - 1.32" (at max. diameter) | |
|
|
0.82" - 0.92" (Minimum thickness, beginning 23" aft of nose) | |
|
TAIL LENGTH |
No. 6 Mk I - 21" | |
|
|
No. 11 Mk I - 20.4" | |
|
|
No. 27 Mk I, II - 9.24" | |
|
TAIL WIDTH |
11.5" | |
|
TOTAL WEIGHT |
490 lbs. | |
|
CHARGE/WEIGHT RATIO |
18% |
|
|
BODY CONSTRUCTION: |
|
Mk V – Forged steel with pointed nose and an open base threaded internally to re-ceive exploder container which is cemented in position. Base of body threaded extern-ally to receive tail adapter, which is in form of a coned ring with four equi-spaced slots to receive the spring clips of the tail. |
|
Earlier Mks – Similar, with slight variations in the tail adapter. |
|
TAIL CONSTRUCTION: |
|
No. 27 Mks I, II – Short type tail unit, arming vanes protruding beyond strut and fins. |
|
No. 11 Mk I – Tail cone with a cylindrical strut attached by four fins. Attached to body by four spring clips. Arming spindle enga-ges fork in tail pistol to arm it. |
|
No. 1 Mk I – (Used on Mks II & III) No spring clips. |
|
No. 4 Mk I – (Used on Mks IIC & IIIC) Spring clips. |
|
SUSPENSION: |
|
Single suspension lug secured to body by four screws. |
|
EXPLOSIVE COMPONENTS: |
Detonators: |
(See Appendix I, page 309) |
| Exploders: |
C.E. & T.N.T. (Mks II - IV); C.E. only (Mk V). There is no separate layer of T.N.T. around the exploder as in the 250 lb. S.A.P. Mk V. |
|
| Filling: |
Mks II - IV – 90 lbs. T.N.T. |
|
Remarks: |
(1) |
No. 30 Tail Fuze has left hand threads on securing ring. |
| (2) |
Use of the No. 37 Tail Pistol is unikely but if used, tail fins usually painted red. |
|
|
(3) |
Mk I is very old and will not be found; Mk IV was never fil-led, though manufactured. |
|
|
 |
