U.S.N.B.D. - BRITISH BOMBS AND FUZES; PYROTECHNICS; DETONATORS |
S.A.P. AND A.P. BOMBS |
|
|
|
|

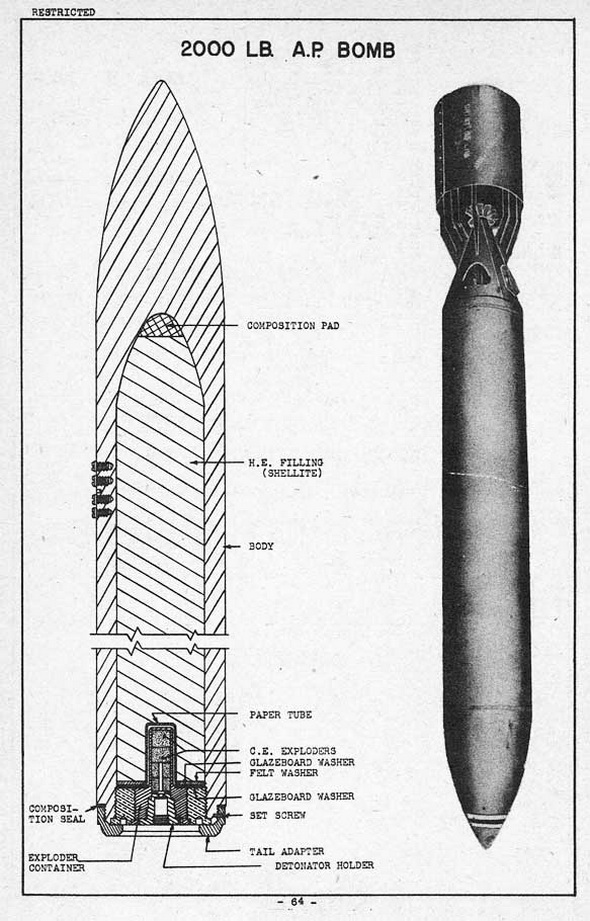

BRITISH BOMB |
|
FUZING: |
2000 LB. S.A.P. |
|
Mks I, II, III: Tail Fuze No. 37. |
||
Mk IV: Tail Pistol No. 30 |
||
COLOR & MARKINGS: |
||
Dark green overall, with light green nose; three |
Mks I, II, III & IV |
|
½" bands, white, red and white respectively, |
|
|
painted 5½" from tip of nose. |
(Service) |
|
TAIL NO. |
Mk I: No. 1 Mk I |
|
|
Mk II & III: No. 10 Mk I |
|
|
Mk IV: No. 47 Mk I |
|
OVERALL LENGTH |
113.0" | |
BODY LENGTH |
80.0" | |
MAX. BODY DIAMETER |
13.5" | |
WALL THICKNESS |
2.4" (approx.) | |
TAIL LENGTH |
35.5" | |
TAIL WIDTH |
13.5" | |
TOTAL WEIGHT |
1934 lbs. | |
CHARGE/WEIGHT RATIO |
9% |
|
BODY CONSTRUCTION: |
Mk I – Forged steel body with solid nose approximately 1.9' long. Slight taper from maximum diameter to the tail. Base threaded externally to take tail adapter and intern-ally to take base adapter, which receives exploder container. Fuze is locked by securing ring. |
Mks II & III – Similar to Mk I, except for tail adapter, which has four equi-spaced threaded for attachment of the tail. |
Mk IV – Modified to take Tail Pistol No. 30. |
TAIL CONSTRUCTION: |
No. 1 Mk I – Aluminum alloy, consisting of cylindrical strut attached to tail cone by four vanes. Fits over tail adapter and secured by six screws. |
No. 15 Mk I – Similar to No. 1 Mk I, but made of steel. Has strengthening ring 2" from base and is secured to tail adapter by four wing bolts. |
No. 47 Mk I – Cylindrical strut secured to tail cone by four fins riveted on. Reach rod extends through tail cone, supported by spi-der. |
SUSPENSION: |
Suspended from plane by two suspension bands. |
EXPLOSIVE COMPONENTS: |
Detonators: |
(See Appendix I, page 309) |
Exploders: |
C.E. issued in position in exploder container. |
|
Filling: |
166 lbs. Shellite, with a composition pad in forward end of cavity, and sealed aft with washers and ce-ment. Shellite is a very insensitive explosive consist-ing of 70% picric and 30% dinitrophenol. |
|
