| U.S.N.B.D. - BRITISH BOMBS AND FUZES; PYROTECHNICS; DETONATORS |
| S.A.P. AND A.P. BOMBS |
|
|
|
|
|
|
BRITISH BOMB |
|
|
FUZING: |

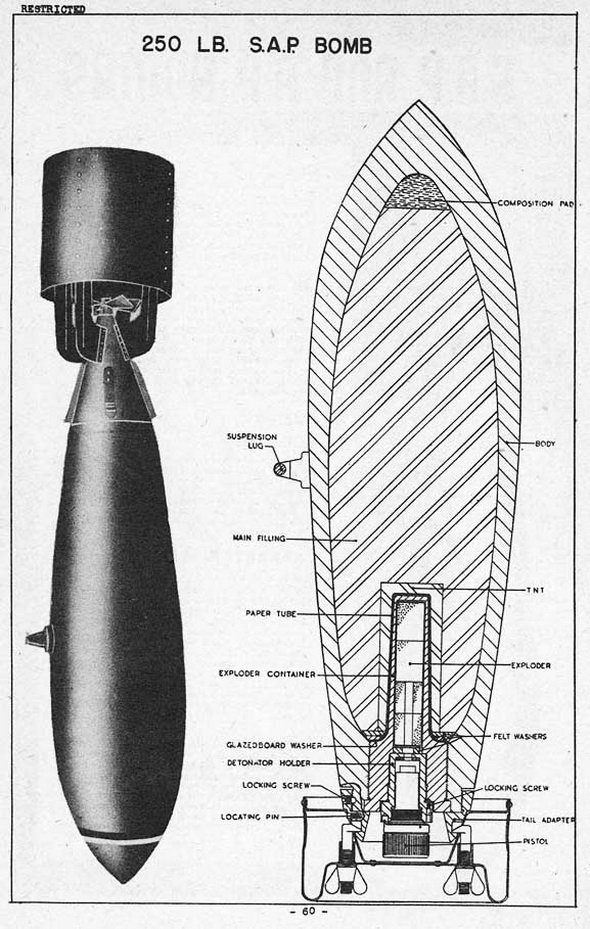

250 LB. S.A.P. |
|
|
Mks II-IV - No. 30 Tail fuze. |
||
|
Mk V - Tail Pistols No. 28 or No. 30 |
||
|
COLOR & MARKINGS: |
||
|
Dark green overall; ½" white band 3" from nose; |
Mks II & III (Obsolete) |
|
|
½" red band 3-½" from nose; 1" light green band |
|
|
|
6.5" from nose. |
Mks IIC, IIIC, & V (Service) |
|
|
TAIL NO. |
Mks II & III - No. 1 Mk I |
|
|
|
Mk V - No. 10 Mk I |
|
|
OVERALL LENGTH |
49" |
|
|
BODY LENGTH |
31.5" | |
|
MAX. BODY DIAMETER |
9.2" | |
|
WALL THICKNESS |
0.91-0.99" (at max. dia- | |
|
|
meter | |
|
|
0.61-0.69" (minimum thickness beginning 16.8" aft of nose) | |
|
TAIL LENGTH |
No. 10 Mk I - 18" | |
|
|
No. 5 Mk I - 18" | |
|
TAIL WIDTH |
9.2" | |
|
TOTAL WEIGHT |
245 lbs. | |
|
CHARGE/WEIGHT RATIO |
17% |
|
|
BODY CONSTRUCTION: |
|
Mk V – Forged steel with pointed nose and an open base threaded internally to re-ceive exploder container, which is cemented in position. Base of body threaded extern-ally to receive tail adapter, which is in form of a coned ring with four equispaced slots to re-ceive the spring clips of the tail. |
|
Earlier Mks – Similar, with slight variations in the tail adapter. |
|
TAIL CONSTRUCTION |
|
No. 10 Mk I – Tail cone with a cylindrical strut attached by four fins. Attached to body 4 spring clips. Arming spindle engages fork in tail pistol to arm it. |
|
No. 1 Mk I – (Used on Mks II & III bombs) No spring clips. |
|
No 3 Mk I – (Used on Mk IIC, Mk IIIC bombs) Spring clips. |
|
SUSPENSION: |
|
Single suspension lug secured to body by four screws. |
|
EXPLOSIVE COMPONETNS: |
Detonators: |
(See Appendix I, page 309) |
| Exploders: |
C.E. pellets (Mk II - IV), H.E. (Mk V). On Mk V there is a seperate layer of T.N.T. around the exploder. |
|
| Filling: |
Mk V, 40.5 lbs. T.N.T./Beeswax. |
|
|
|
Mk II - IV, 41.5 lbs. T.N.T. |
|
REMARKS: |
(1) |
No. 30 tail fuze has left hand thread on securing ring. |
| (2) |
Use of the No. 37 tail pistol is unikely. Tail fins usually paint-ed red when time pistol No. 37 is used. |
|
|
(3) |
Any mark may be found fitted with copper driving band for proof firing from B.L. 9.2" Howitzer. |
|
|
 |
