| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75/32-mm Light Field Gun Cartridge Case |
| Data |
|
Over-all length |
334.1 mm |
|
Over-all diameter at mouth |
78.5 mm |
|
Width of rim |
3.6 mm |
|
Diameter at rim |
90.2 mm |
|
Weight of empty case |
1.4 kg |
| Igniter | |
|
10 grams of black powder |
|
| Propellant | |
|
Type I |
|
|
Lightest loading |
0.280 kg Ballistite (1.5 x 15 x 15) |
|
Second lightest loading |
0.280 kg + 0.220 kg Ballistite (2 x 20 x 20) Total - 0.500 kg |
|
Third lightest loading |
0.280 kg + 0.220 kg + 0.220 kg Total - 0.720 kg |
|
Type II |
|
|
Lightest loading |
0.280 kg Ballistite (1.5 x 15 x 15) |
|
2nd lightest loading |
0.280 kg + 0.365 kg Ballistite (2 x 20 x 20) Total - 0.545 kg |
| Remarks |
| This case is also used in a 75/27-mm fixed round. |
|

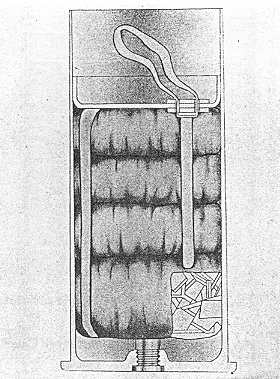

Figure 187 |
|
|
|

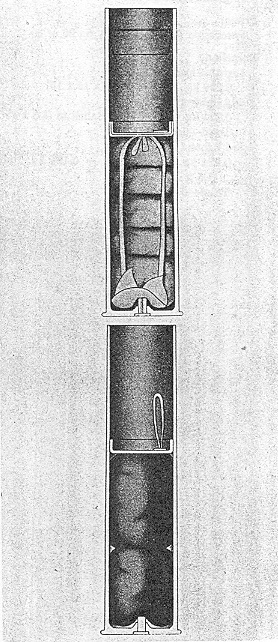

Figure 188 |
|
|
 |
