| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 240-mm (Bomba) |
| Data |
|
Equipment used in |
240-mm Mortar |
| 400-mm Mortar | |
|
Fuzing |
|
|
240-mm |
French type M35 I.T. or Nose Fuze M17 or I. M38 |
|
400-mm |
French type M15 I.T. |
|
Over-all length with fuze |
|
|
240-mm |
965 mm |
|
400-mm |
1700 mm |
|
Length of body |
672 mm |
|
Body diameter |
240 mm |
|
Type of filling |
TNT or Amatol |
|
Weight of filling |
Unknown |
|
Total weight |
|
|
240-mm |
65.5 kg |
|
400-mm |
265 kg |
|
Booster |
No. 4 M38 |
| Remarks |
| These mortar bombs are very similar to aircraft bombs. |
|

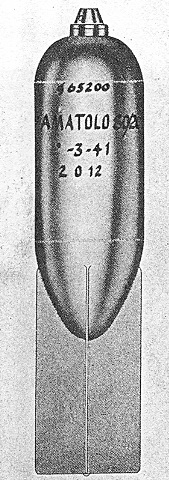

Figure 184 |
|
|
 |
