| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 77/28-mm Field Gun Cartridge Case |
| Dimensions |
|
Unknown |
|
| Igniter | |
|
10 grams black powder |
|
| Primer | |
|
Percussion Primer M08 P.B. |
|
| Propellant | |
|
Lightest loading |
0.224 kg Ballistite (1.5 x 15 x 15) |
|
2nd lightest loading |
0.224 kg + 0.088 kg Ballistite (1.5 x 15 x 15) Total - 0.312 kg |
|
3rd lightest loading |
0.224 kg + 0.088 kg + 0.184 kg Ballistite (1.5 x 15 x 15) Total - 0.496 kg |
|

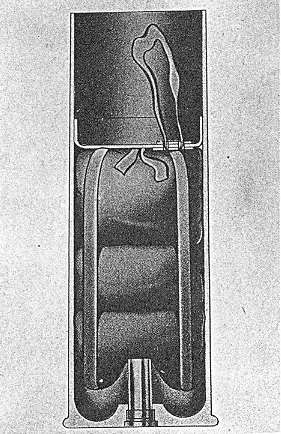

Figure 189 |
|
|
 |
