| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 420-mm H.E. (Short and Long) |
| Data |
|
Gun used in |
420/12-mm Heavy Howitzer |
|
Fuzing |
|
|
Base |
Unknown |
|
Over-all length |
|
|
Short |
1375 mm |
|
Long |
1554 mm |
|
Diameter at base |
485.9 mm |
|
Distance base to 1st band |
25 mm |
|
Distance base to 2nd band |
70 mm |
|
Width of 1st band |
25 mm |
|
Width of 2nd band |
40.5 mm |
|
Diameter at bourrelet |
|
|
Short |
418.8 mm |
|
Long |
418.7 mm |
|
Type of filling |
TNT |
|
Weight of filling |
|
|
Short |
75 kg |
|
Long |
90 kg |
|
Weight of loaded projectile |
|
|
Short |
800 kg |
|
Long |
1000 kg |
|

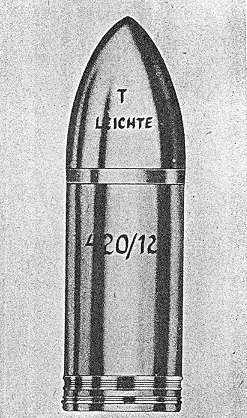

Figure 183 |
|
|
 |
