| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 305/17-mm H.E. (Cast-Steel) |
| Data |
|
Gun used in |
305/17-mm Howitzer |
|
Fuzing |
|
|
Nose |
Unknown |
|
Over-all length without fuze |
1236 mm |
|
Diameter at base |
302.4 mm |
|
Distance base to band |
55 mm |
|
Width of band |
51.5 mm |
|
Diameter at bourrelet |
303.8 mm |
|
Type of filling |
MST |
|
Weight of filling |
33.490 kg |
|
Weight of projectile |
328.500 kg |
|
Booster |
No. 4 M38 |
|

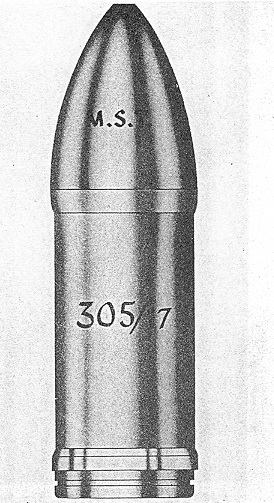

Figure 180 |
|
|
 |
