| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 305/17-mm H.E. (One-Piece) |
| Data |
|
Gun used in |
305/17-mm Howitzer |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length without fuze |
1130 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
177 mm |
|
Width of band |
51.8 mm |
|
Diameter at bourrelet |
303.52 mm |
|
Type of filling |
MST |
|
Weight of filling |
46.125 kg |
|
Weight of loaded projectile |
259 kg |
|
Booster used |
No. 4 M38 |
| Remarks |
| The projectile is of one-piece construction. |
|

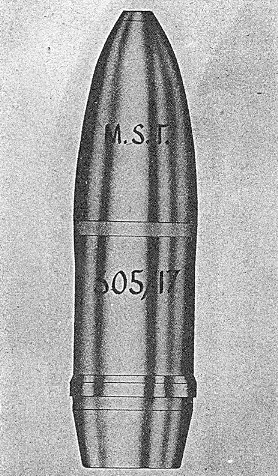

Figure 181 |
|
|
 |
