| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 305/17-mm H.E. (Heavy) |
| Data |
|
Gun used in |
305/17-mm Howitzer |
|
Fuzing |
Base Fuze M14 for 305/17 |
|
Over-all length |
1175 mm |
|
Diameter at base |
302.2 mm |
|
Distance base to band |
55 mm |
|
Width of band |
51.5 mm |
|
Diameter at bourrelet |
303.8 mm |
|
Type of filling |
TNT |
|
Weight of filling |
19.145 kg |
|
Weight of loaded projectile |
441.100 kg |
|

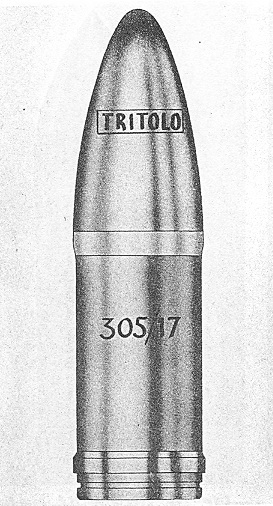

Figure 179 |
|
|
 |
