| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 305/17-mm H.E. |
| Data |
|
Gun used in |
305/17-mm Howitzer |
|
Fuzing |
|
|
Nose |
Unknown |
|
Over-all length with plug |
1151 mm |
|
Diameter at base |
302.2 mm |
|
Distance base to band |
55 mm |
|
Width of band |
51.5 mm |
|
Diameter at bourrelet |
303.8 mm |
|
Type of filling |
TNT |
|
Weight of filling |
43.100 kg |
|
Weight of loaded projectile |
348 kg |
|
Booster used |
No. 4 M38 |
|

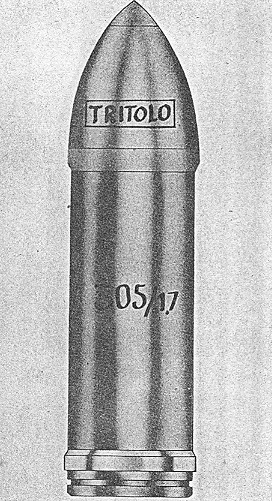

Figure 178 |
|
|
 |
