| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 210/22-mm H.E. M35 |
| Data |
|
Gun used in |
210/22-mm Field Gun |
|
Fuzing |
Nose Percussion Fuze (Guerritore V. M38) |
|
Over-all length |
|
|
With fuze |
851.2 mm |
|
Without fuze |
820.2 mm |
|
Diameter at base |
185 mm |
|
Distance base to band |
102.5 mm |
|
Width of band |
30 mm |
|
Diameter at bourrelet |
209.4 mm |
|
Type of filling |
Amatol |
|
Weight of filling |
18.590 kg |
|
Weight of loaded projectile |
101.133 kg |
|

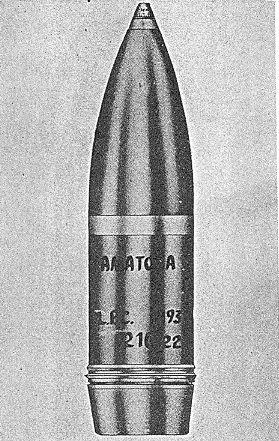

Figure 171 |
|
|
 |
