| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 210-mm H.E. (Bomba) |
| Data |
|
Gun used in |
210/8-mm Field Gun |
|
Fuzing |
Nose Percussion Fuze (Guerritore) I. M35 or I. M38 |
|
Over-all length |
|
|
Without fuze |
776 mm |
|
Diameter at base |
208 mm |
|
Distance base to band |
107.5 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
209.5 mm |
|
Type of filling |
MST |
|
Weight of filling |
21 kg |
|
Weight of loaded projectile |
60.5 kg |
| Remarks |
| The projectile has a very unusual round base. |
|

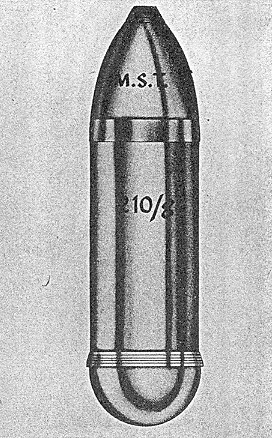

Figure 170 |
|
|
 |
