| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 260/9-mm H.E. |
| Data |
|
Gun used in |
260/9-mm Field Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length with nose plug |
953 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
73 mm |
|
Width of band |
34 mm |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
TNT |
|
Weight of filling |
25.940 kg |
|
Weight of loaded projectile |
219.100 kg |
|
Booster |
No. 4 M38 |
| Remarks |
|
The projectile has a streamlined base. One modification has less wall thickness. |
|

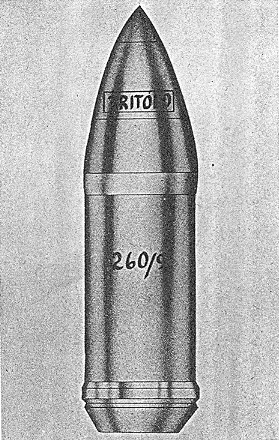

Figure 172 |
|
|
 |
