| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 210-mm H.E. (Cast-Steel) |
| Data |
|
Gun used in |
210/8-mm Field Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
735 mm |
|
Diameter at base |
200 mm |
|
Distance base to band |
14.5 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
209.3 mm |
|
Type of filling |
TNT |
|
Weight of filling |
11 kg to 14.70 kg |
|
Weight of loaded projectile |
100 kg to 103.6 kg |
|

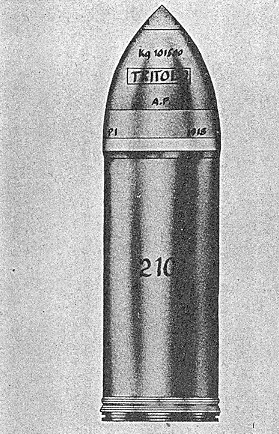

Figure 169 |
|
|
 |
