| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 210-mm H.E. |
| Data |
|
Guns used in |
210/8-mm Field Gun, |
| 210/22-mm Howitzer | |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
730.3 mm |
|
Without fuze |
712 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
25 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
209.30 mm |
|
Type of filling |
TNT or MAT or MBT |
|
Weight of filling |
14.125 kg |
|
Weight of loaded projectile |
100.500 kg |
|
Booster used |
No. 4 M38 |
|

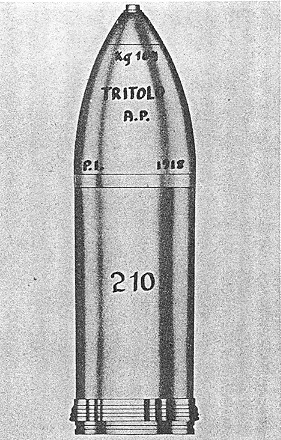

Figure 168 |
|
|
 |
