| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 152/45-50-mm H.E. (Base-Fuzed) |
| Data |
|
Guns used in |
152/45-mm Gun |
| 152/50-mm Gun | |
|
Fuzing |
Base Fuze M914 |
|
Over-all length |
599 mm |
|
Diameter at base |
144.5 mm |
|
Distance base to band |
35 mm |
|
Width of band |
65 mm |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
TNT |
|
Weight of filling |
3.75 kg |
|
Weight of loaded projectile |
47 kg |
|

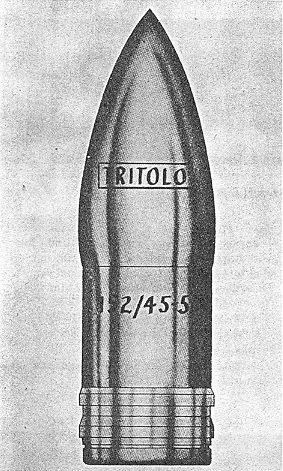

Figure 165 |
|
|
  |
