| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 152/32-45-mm H.E. (Base-Fuzed) |
| Data |
|
Guns used in |
152/32-mm Gun, |
| 152/45-mm Gun | |
|
Fuzing |
Base Fuze M914, M909K25 or M911/917 |
|
Over-all length |
545 mm |
|
Diameter at base |
150.3 mm |
|
Distance base to band |
32.4 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
TNT |
|
Weight of filling |
3.351 kg |
|
Weight of loaded projectile |
47 kg |
|

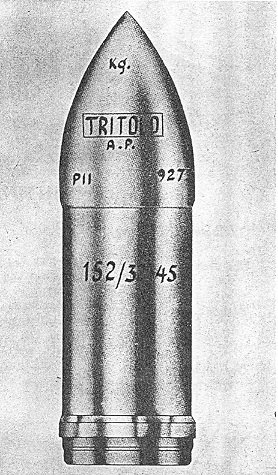

Figure 166 |
|
|
 |
