| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 152/37-mm H.E. |
| Data |
|
Gun used in |
152/37-mm Gun |
|
Fuzing |
Nose Percussion Fuze M17 (Guerritore) I. M35 m.c. or I. M38 m.c. |
|
Over-all length |
|
|
With cap |
844 mm |
|
Diameter at base |
150.9 mm |
|
Distance base to 1st band |
25 mm |
|
Distance base to 2nd band |
64 mm |
|
Width of 1st band |
30 mm |
|
Diameter at bourrelet |
151.87 mm |
|
Type of filling |
TNT |
|
Weight of filling |
4.68 kg |
|
Weight of loaded projectile |
54.0 kg |
| Remarks |
| The projectile has a ballistic cap and two rotating bands. |
|

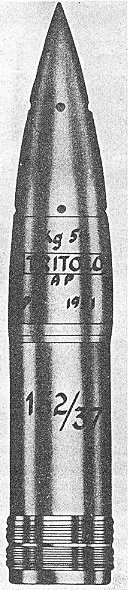

Figure 164 |
|
|
 |
