| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 152/13-mm H.E. (Long) |
152/13-mm H.E. (Long) |
| Data |
|
Gun used in |
152/13-mm Heavy Field Howitzer |
|
Fuzing |
Nose Percussion Fuze British No. 100, 101, 101E, 106 or 44 |
|
Over-all length |
|
|
With fuze |
582 mm |
|
Without fuze |
531 mm |
|
Diameter at base |
150.1 mm |
|
Distance base to band |
21 mm |
|
Width of band |
17 mm |
|
Diameter at bourrelet |
152 mm |
|
Type of filling |
TNT |
|
Weight of filling |
3.340 kg |
|
Weight of loaded projectile |
45 kg |
| Remarks |
| This projectile is of British design and uses British fuzes. |
|

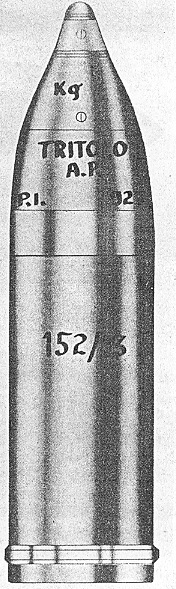

Figure 163 |
|
|
 |
