| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 152/13-mm H.E. (Short) |
| Data |
|
Gun used in |
152/13-mm Heavy Field Howitzer |
|
Fuzing |
Nose Percussion Fuzes British No. 101, 101E, 106, or 44 |
|
Over-all length |
|
|
With fuze |
522.5 mm |
|
Without fuze |
471.5 mm |
|
Diameter at base |
150.1 mm |
|
Distance base to band |
31.5 mm |
|
Width of band |
26.5 mm |
|
Diameter at bourrelet |
151.4 mm |
|
Type of filling |
TNT |
|
Weight of filling |
5.670 kg |
|
Weight of loaded projectile |
45 kg |
| Remarks |
| The fuze is similar to 152/13-mm (long) and is also British designed. |
|

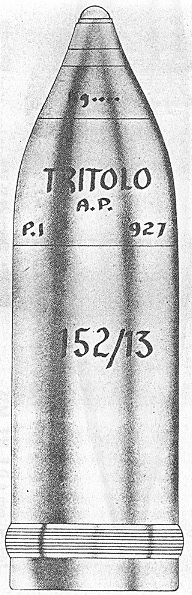

Figure 162 |
|
|
 |
