| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 152-mm H.E. |
| Data |
|
Gun used in |
152/37-mm Gun |
|
|
152/45-mm Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
665.3 mm |
|
Without fuze |
650 mm |
|
Diameter at base |
151.2 mm |
|
Distance base to band |
32 mm |
|
Width of band |
21.5 mm |
|
Diameter at bourrelet |
151.8 mm |
|
Type of filling |
TNT |
|
Weight of filling |
5.52 kg |
|
Weight of loaded projectile |
45.9 kg |
|

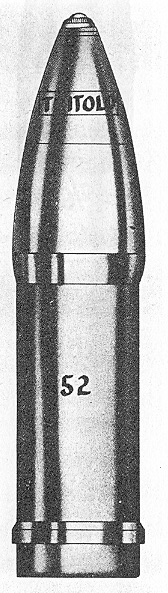

Figure 161 |
|
|
 |
