| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/35-mm H.E. (British) |
| Data |
|
Gun used in |
149/35-mm Gun |
|
Fuzing |
Nose Percussion Fuze M17 or M (Guerritore) |
|
Over-all length |
|
|
With fuze |
538.2 mm |
|
Without fuze |
521.2 mm |
|
Diameter at base |
148.0 mm |
|
Distance base to band |
23 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
148.5 mm |
|
Type of filling |
TNT or MST |
|
Weight of filling |
6.61 kg or 4.8 kg |
|
Weight of loaded projectile |
42.80 kg or 41.45 kg |
| Remarks |
| This projectile is of British manufacture and has British markings. |
|

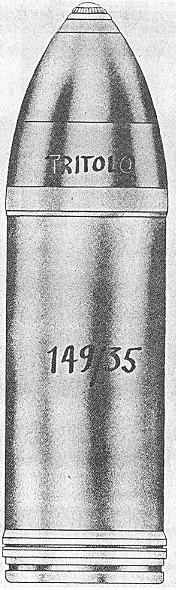

Figure 158 |
|
|
 |
