| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/35-mm A.D.E. M32 |
| Data |
|
Gun used in |
149/35-mm Gun |
|
Fuzing |
Nose Fuze A.D.E. M32 |
|
Over-all length |
|
|
With fuze |
728 mm |
|
Without fuze |
614.4 mm |
|
Diameter at base |
128 mm |
|
Distance base to band |
62 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
148.6 mm |
|
Type of filling |
TNT |
|
Weight of filling |
4.90 kg |
|
Weight of loaded projectile |
45.9 kg |
|

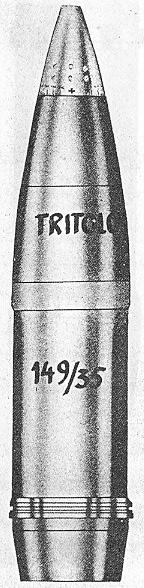

Figure 159 |
|
|
 |
