| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/13-35-mm H.E. (One-Piece) |
| Data |
|
Gun used in |
149/13-mm and 149/35-mm Guns |
|
Fuzing |
Nose Percussion Fuze M17 or M (Guerritore) |
|
Over-all length |
|
|
With fuze |
595 mm |
|
Without fuze |
580 mm |
|
Diameter at base |
130 mm |
|
Distance base to band |
86 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
148.5 mm |
|
Type of filling |
MBT or MNDT or MST |
|
Weight of filling |
6.59 kg, 5.26 kg, or 5.7 kg |
|
Weight of loaded projectile |
37.93 kg, 36.24 kg, or 37.1 kg |
| Remarks |
| The weight of this projectile depends upon the type of filling. |
|

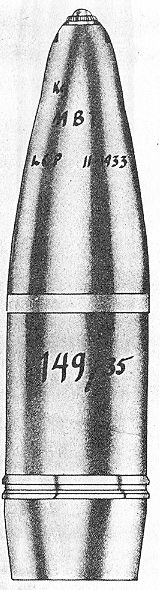

Figure 157 |
|
|
 |
