| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/12-35-mm H.E. (Cast-Steel) |
| Data |
|
Guns used in |
149/12-mm Heavy Field Howitzer |
|
|
149/35-mm Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
523.3 mm |
|
Without fuze |
508 mm |
|
Diameter at base |
154 mm |
|
Distance base to band |
24 mm |
|
Width of band |
25 mm |
|
Diameter at bourrelet |
148.5 mm |
|
Type of filling |
MAT |
|
Weight of filling |
4.75 kg |
|
Weight of loaded projectile |
38.47 kg |
| Remarks |
| The projectile is made of cast steel. |
|

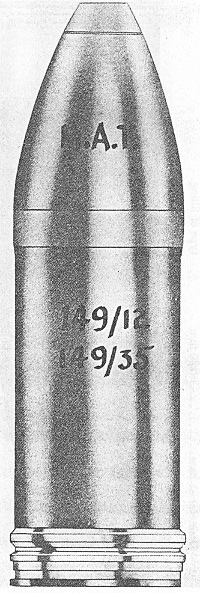

Figure 156 |
|
|
 |
