| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/35-mm H.E. M32/38 |
| Data |
|
Gun used in |
149/35-mm Gun |
|
Fuzing |
Nose Percussion Fuze (Guerritore) I. M38 M.C. |
|
Over-all length |
|
|
With fuze |
738 mm |
|
Without fuze |
707 mm |
|
Diameter at base |
128 mm |
|
Distance base to band |
82 mm |
|
Width of band |
26 mm |
|
Diameter at bourrelet |
148.6 mm |
|
Type of filling |
MBT or MST or MNDT |
|
Weight of filling |
4.900 kg |
|
Weight of loaded projectile |
45.950 kg |
|

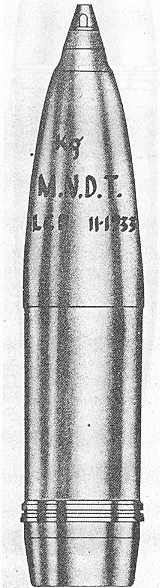

Figure 155 |
|
|
 |
