| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/35-mm H.E. M32 |
| Data |
|
Guns used in |
149/13-mm Heavy Field Gun |
| 149/40-mm Gun | |
| 149/35-mm Gun | |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
625.3 mm |
|
Without fuze |
610 mm |
|
Diameter at base |
125 mm |
|
Distance base to band |
82 mm |
|
Width of band |
16 mm |
|
Diameter at bourrelet |
148.6 mm |
|
Type of filling |
TNT |
|
Weight of filling |
6.327 kg |
|
Weight of loaded projectile |
42.675 kg |
| Remarks |
|
The projectiles for the 149/40-mm and 149/35-mm guns differ from the 149/13-mm pro-jectiles in diameter of the rotating band. |
|

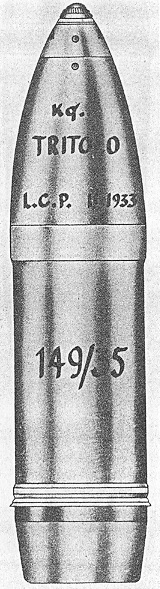

Figure 154 |
|
|
 |
