| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 149/13-mm H.E. |
| Data |
|
Guns used in |
149/13-mm Heavy Field Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
568 mm |
|
Without fuze |
552.7 mm |
|
Diameter at base |
147.4 mm |
|
Distance base to band |
28 mm |
|
Width of band |
20 mm |
|
Diameter at bourrelet |
148.6 mm |
|
Type of filling |
MAT |
|
Weight of filling |
5.12 kg |
|
Weight of loaded projectile |
40.095 kg |
|

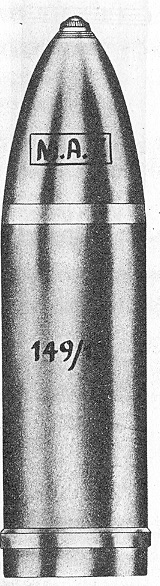

Figure 153 |
|
|
 |
