| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 120/40-mm H.E. (Base-Fuzed) |
| Data |
|
Gun used in |
120/25-mm Gun |
|
|
120/40-mm Gun |
|
|
120/50-mm Gun |
|
Fuzing |
Base Fuze M41 |
|
Over-all length |
463 mm |
|
Diameter at base |
119 mm |
|
Distance base to band |
30.5 mm |
|
Width of band |
38.1 mm |
|
Diameter at bourrelet |
119.5 mm |
|
Type of filling |
TNT |
|
Weight of filling |
1.820 kg |
|
Weight of loaded projectile |
23.600 kg |
|

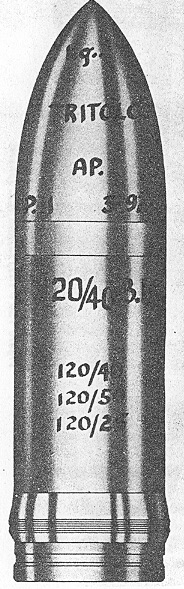

Figure 148 |
|
|
 |
