| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 120/45-mm H.E. |
| Data |
|
Gun used in |
120/45-mm Gun |
|
Fuzing |
Unknown |
|
Over-all length |
|
|
With fuze |
493 mm |
|
Without fuze |
440 mm |
|
Diameter at base |
112 mm |
|
Distance base to band |
43 mm |
|
Width of band |
40 mm |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
TNT |
|
Weight of filling |
2.39 kg |
|
Weight of loaded projectile |
Unknown |
|

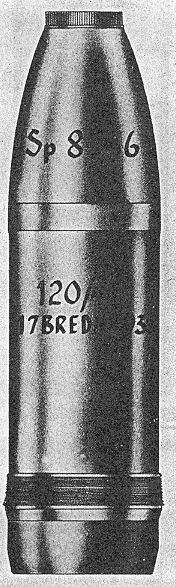

Figure 149 |
|
|
 |
