| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 120/40-mm H.E. (Cast Steel) |
| Data |
|
Gun used in |
120/40-mm Gun |
|
|
120/50-mm Gun |
|
|
120/25-mm Gun |
|
Fuzing |
Nose percussion Fuze M17 or |
|
|
(Guerritore) M-m e.g.c. |
|
Over-all length |
|
|
With fuze |
440 mm |
|
Without fuze |
425 mm |
|
Diameter at base |
118 mm |
|
Distance base to band |
25 mm |
|
Width of band |
20 mm |
|
Diameter at bourrelet |
119.5 mm |
|
Type of filling |
MST |
|
Weight of filling |
1.880 kg |
|
Weight of loaded projectile |
24.900 kg |
| Remarks |
| This projectile is cast steel. |
|

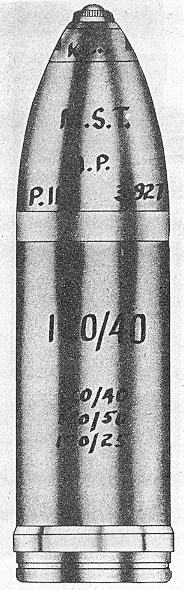

Figure 147 |
|
|
 |
