| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 120/25-mm H.E. (Cast Steel) |
| Data |
|
Gun used in |
120/25-mm Gun |
|
Fuzing |
Nose Percussion Fuze M17 |
|
Over-all length |
|
|
With fuze |
421 mm |
|
Without fuze |
406 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
65 mm |
|
Width of band |
15 mm |
|
Diameter at bourrelet |
119.4 mm |
|
Type of filling |
Pertite |
|
Weight of filling |
2.080 kg |
|
Weight of loaded projectile |
19.200 kg |
| Remarks |
| This projectile is cast steel. |
|

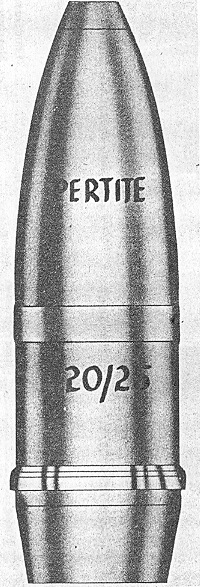

Figure 146 |
|
|
 |
