| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 105/28-mm A.D.E. M32 |
| Data |
|
Gun used in |
105/14-mm Gun |
| 105/28-mm Light Field Gun | |
| 105/32-mm Gun | |
|
Fuzing |
Nose Fuze A.D.E. M32 or A.D.E. M36 |
|
Over-all length |
|
|
With fuze |
510 mm |
|
Without fuze |
415 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
68 mm |
|
Width of band |
14.8 mm |
|
Diameter of bourrelet |
104.6 mm |
|
Type of filling |
TNT |
|
Weight of filling |
1.76 kg |
|
Weight of loaded projectile |
16.125 kg |
|
Booster used |
No. 2 M38 |
|

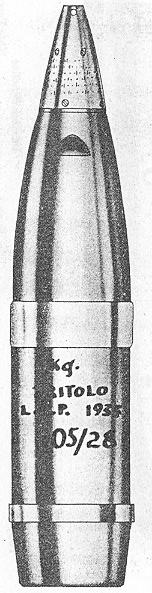

Figure 138 |
|
|
 |
