| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 105-mm A.P. |
| Data |
|
Gun used in |
105/14-mm Light Field Gun |
|
Fuzing |
Unknown |
|
Over-all length |
300.5 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
59.5 mm |
|
Width of band |
18 mm |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
Unknown |
|
Weight of filling |
Unknown |
|
Weight of loaded projectile |
15.65 kg |
|

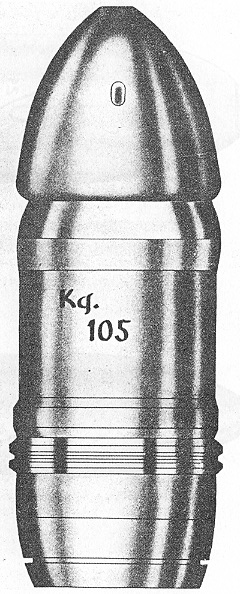

Figure 139 |
|
|
 |
