| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 105/28-mm H.E. M32 |
| Data |
|
Guns used in |
105/14-mm Gun |
| 105/28-mm Light Field Gun | |
| 105/32-mm Gun | |
|
Fuzing |
Nose Percussion Fuze M10 |
|
Over-all length |
|
|
With fuze |
469.0 mm |
|
Without fuze |
455 mm |
|
Diameter at base |
90.0 mm |
|
Distance base to band |
58 mm |
|
Width of band |
14.8 mm |
|
Diameter at bourrelet |
104.60 mm |
|
Type of filling |
TNT |
|
Weight of filling |
2.35 kg |
|
Weight of loaded projectile |
16.3 kg |
|
Booster used |
No. 2 M38 |
|

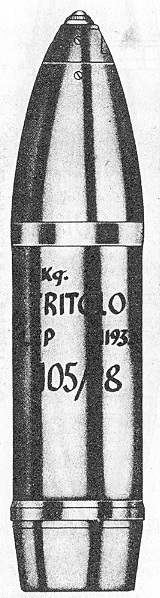

Figure 137 |
|
|
 |
