| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75/13-mm E.P. (Hollow-Charge) |
| Data |
|
Guns used in |
|
|
Fixed |
75/18-mm Self-Propelled Assault Gun |
|
Semifixed |
75/18-mm Mountain Howitzer |
|
Fuzing |
Base Fuze E.P. M41 |
|
Over-all length |
307 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
58 mm |
|
Width of band |
9.7 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
Probably TNT |
|
Weight of filling |
Unknown |
|
Length of round (fixed) |
483 mm |
|
Weight of round (fixed) |
6.570 kg |
|
Weight of loaded projectile |
5.200 kg |
| Propellant charge (fixed) | 0.249 kg Ballistite |
| Remarks |
|
The fixed cartridge case is made of steel. The projectile has a nose cap which is 83.5 mm long. |
|

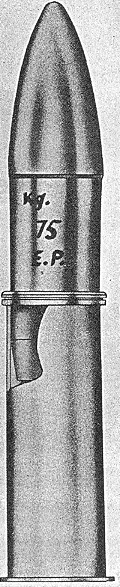

Figure 119 |
|
|
 |
