| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75-mm E.P.S. M42 (Hollow-Charge) |
| Data |
|
Guns used in |
|
|
Fixed |
75/18-mm Self-Propelled Assault Gun |
| 75/34-mm Self-Propelled Assault Gun | |
|
Semifixed |
75/27-mm Field Gun |
|
Fuzing |
Nose Fuze E.P.S. M42 |
|
Over-all length |
|
|
With fuze |
310 mm |
|
Without fuze |
298 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
58 mm |
|
Width of band |
9.7 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
Probably TNT |
|
Weight of filling |
Unknown |
|
Weight of loaded projectile |
5.300 kg |
|
Length of round (fixed) |
|
|
75/18-mm gun |
484.5 mm |
|
75/34-mm gun |
586.1 mm |
|
Propellant charge (fixed) |
|
|
75/18-mm gun |
0.249 kg Ballistite |
|
75/34-mm gun |
0.690 kg F.B1 Powder |
|
Weight of round (fixed) |
|
|
75/18-mm |
6.670 kg |
|
75/34-mm |
7.470 kg |
| Remarks |
|
The cartridge case in the fixed type of ammunition (75/18-mm) is made of steel. The projectile has a 74-mm cap, which is hollow. |
|

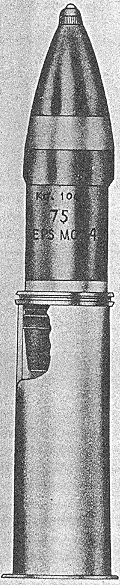

Figure 120 |
|
|
 |
