| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75-mm E.P.S. (Hollow-Charge) |
| Data |
|
Gun used in |
|
|
Semifixed |
75/13-18-27-32-mm Guns |
|
Fixed |
Self-Propelled Assault Gun |
|
Fuzing |
Base Fuze I.E.P.M. |
|
Over-all length |
|
|
With fuze |
310 mm |
|
Without fuze |
302 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
58 mm |
|
Width of band |
9.7 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
Unknown |
|
Weight of filling |
Unknown |
|
Total length of round |
|
|
75/13-mm |
484.5 mm |
|
75/18-mm |
578.1 mm |
|
Weight of complete round |
|
|
75/13-mm |
6.57 kg |
|
75/18-mm |
7.37 kg |
|
Weight of propellant |
|
|
75/13-mm |
0.249 kg |
|
75/18-mm |
0.690 kg |
|

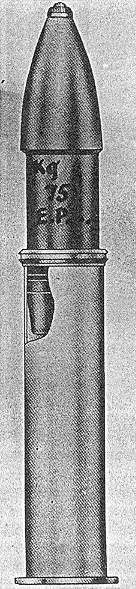

Figure 118 |
|
|
 |
