| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75-mm E.P. (Hollow-Charge) |
| Data |
|
Guns used in |
|
|
Fixed |
75/18-mm Self-Propelled Assault Gun |
|
Semifixed |
75/18-mm Mountain Howitzer |
|
Fuzing |
Base Fuze E.P. M36 |
|
Over-all length |
|
|
With nose cap |
254 mm |
|
Without nose cap |
208 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
58 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
Unknown |
|
Weight of filling |
Unknown |
|
Weight of loaded projectile |
4.500 kg |
|
Length of round (fixed) |
428.5 mm |
|
Weight of round (fixed) |
5.870 kg |
|
Propellant charge (fixed) |
0.249 kg Ballistite |
| Remarks |
|
The semifixed round uses the cartridge case for the 75/18-mm Howitzer. The cartridge case for the fixed is made of steel. |
|

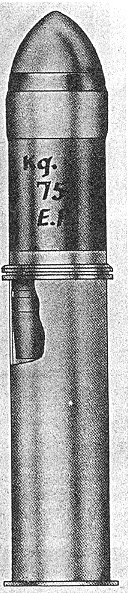

Figure 117 |
|
|
 |
