| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75-mm A.P. |
| Data |
|
Guns used in |
|
|
Fixed |
75/18-mm Self-Propelled Assault Gun |
|
Seimfixed |
75/13-mm Mountain Howitzer |
|
Fuzing |
Base Fuze M09/41 p.c. |
|
Over-all length |
330 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
49.7 mm |
|
Width of band |
9.7 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
TNT |
|
Weight of filling |
0.265 kg |
|
Weight of loaded projectile |
6.42 kg |
|
Length of round (fixed) |
|
|
75/18-mm Self-propelled gun |
572.8 mm |
|
Weight of round (fiexd) |
8.080 kg |
|
Propellant charge (fixed) |
0.420 kg Ballistite |
|
Booster |
No. 5 M38 |
| Remarks |
|
The projectile is fitted with piercing and ballistic caps. The cartridge case for 75/18-mm fixed round is made of steel. |
|

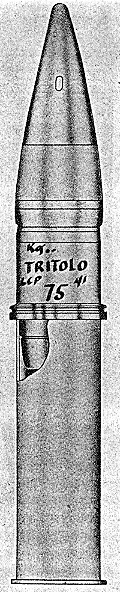

Figure 114 |
|
|
 |
