| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75-mm A.A. |
| Data |
|
Gun used in |
|
|
Fixed-ammunition |
75/27-mm Antiaircraft Gun |
|
Fuzing |
Nose Time Fuze M06/17 |
|
Over-all length |
Unknown |
|
Diameter at base |
Unknown |
|
Distance base to band |
Unknown |
|
Width of band |
Unknown |
|
Diameter at bourrelet |
Unknown |
|
Type of filling |
TNT |
|
Weight of filling |
0.123 kg |
|
Weight of loaded projectile |
6.381 kg |
|
Length of complete round |
517 mm |
|
Weight of complete round |
8.320 kg |
|
Propellant charge |
0.570 kg Ballistite or |
| 0.560 kg C2 Powder |
|

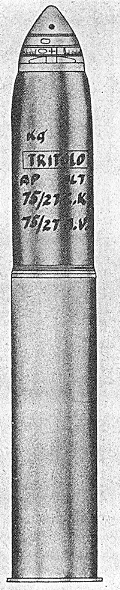

Figure 113 |
|
|
 |
