| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75/27-mm A.P. |
| Data |
|
Guns used in |
|
|
Fixed |
75/18-mm Self-propelled Assault Gun |
|
Semifixed |
75/27-mm Field Gun |
|
Fuzing |
Base Fuze M09/41 |
|
Over-all length |
307 mm |
|
Diameter at base |
Unknown |
|
Distance base to band |
50 mm |
|
Width of band |
9.7 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
Probably TNT |
|
Weight of filling |
0.27 kg |
|
Weight of loaded projectile |
6.200 kg |
|
Length of round (fixed) |
|
|
75/18-mm |
589.5 mm |
|
Weight of round (fixed) |
7.880 kg |
|
Propellant charge (fixed) |
0.420 kg Ballistite |
| Remarks |
| Cartridge case for 75/18-mm fixed round is steel. |
|

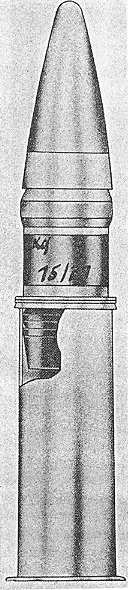

Figure 115 |
|
|
 |
