| ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
| Chapter 3 |
| ITALIAN PROJECTILES AND CASES |
| 75/32-mm A.D.E.-H.E. |
| Data |
|
Gun used in |
|
| Semifixed-ammunition | 75/32-mm Field Gun |
|
Fuzing |
Nose Fuze A.D.E. M36 |
|
Over-all length |
|
| With fuze | 368 mm |
| Wihtout fuze | 273 mm |
|
Diameter at base |
65.20 mm |
|
Distance base to band |
42 mm |
|
Width of band |
14 mm |
|
Diameter at bourrelet |
74.74 mm |
|
Type of filling |
Unknown |
|
Weight of filling |
0.5 kg |
|
Weight of loaded projectile |
6.3 kg |
|
Cartridge case |
Type for 75/32-mm gun |
| Remarks |
|
This projectile is called a double-purpose type by the Italian and Germans. It can be set for serial burst or impact. |
|

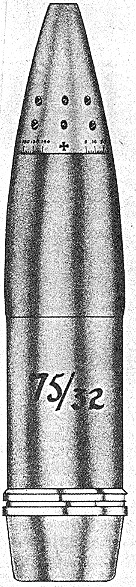

Figure 112 |
|
|
 |
