ITALIAN AND FRENCH EXPLOSIVE ORDNANCE |
Chapter 3 |
ITALIAN PROJECTILES AND CASES |
12.7-mm A.P.I.T. (White Tip) |
Data |
Gun used in |
12.7-mm Aircraft Machine Gun |
Over-all length of round |
107 mm |
Weight of complete round |
83.5 grams |
Length of bullet |
50.6 mm |
Weight of bullet |
36.7 grams |
Length of cartridge case |
81 mm |
Weight of propellant |
7.8 grams |
Remarks |
The bullet consists of copper-nickel jacket; a copper sleeve, forming the nose of the bul-let; a steel core with a lead bend pressed around its base into cannelures; a lead base plug and tracer tube; a transparent closing disc and brass washer; and a split steel sup-porting piece in the nose, which possibly acts as a formig anvil. The nose is filled with three compositions: first, in the tip and intimately pressed into the split anvil, a mixture of aluminum-lead oxid; next, a mixture of magnesium-potassium chlorate antimony sul-phide; and around the nose of the core, magnesium-lead oxid. The tracer burns a bright red. |

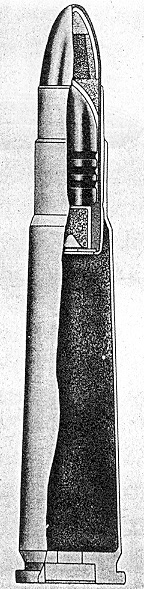

Figure 85 |
|
